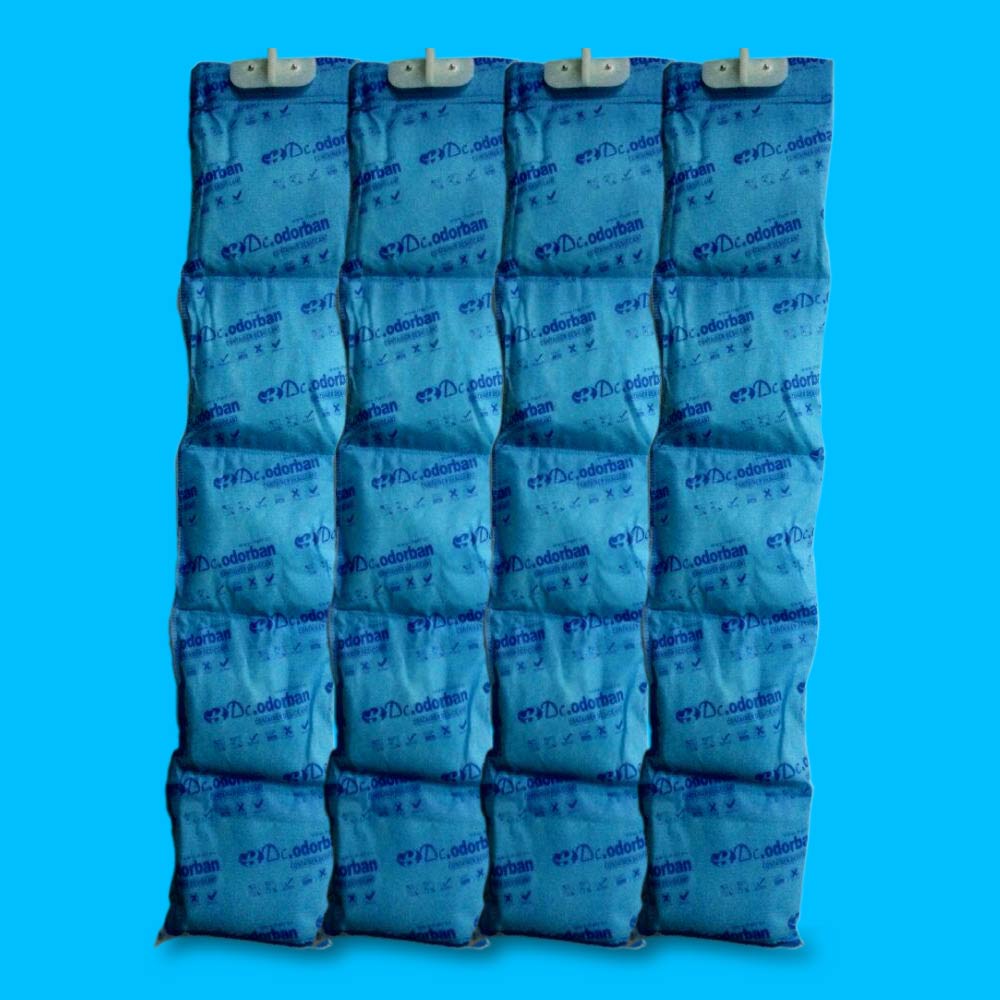

T-1000集装箱干燥棒
Desiccant for containers
iHeir CHINA ANTIFUNGAL tECHNOLOGY CO., LTD
艾浩尔（中国）有限公司 印製
目的 Purpose
我们通过对仓储、运输环境的湿度控制，控制霉菌的生长条件，以消除空间内霉菌孢子引起产品发霉、变质、腐蚀等有害。影响。 We are through the storage, transport the humidity control, control mold growth conditions , in order to eliminate the space caused by
products mildew spores , deterioration, corrosion and other harmful effects.
产品简介
出口货物在运输过程中，特别是海运途中，昼夜温差较大，容易形成凝露现象（俗称“货柜箱雨”和“货物汗”），这一现象是导致产品发霉的主要原因。我公司经过多方面的努力和调查，进行深入的分析和研究。最后选择由美国进口的特殊材料（交联聚丙烯酸钠又名高吸水性树脂）为原料经过一系列的特殊处理和加工制成了T-1000货柜箱干燥棒。本产品不但具有吸水速度快，而且保水能力和吸水能力也特别强。本产品吸水后溶胀呈凝胶状态，被吸收的水包封在高分子的网络中，即使其周围环境的湿度远远低于本身的湿度也不会出现“吐水”的现象。就算在加压的情况下也不易失去所吸收的水。本产品还能吸收本身重量几十倍甚至几百倍。
在25℃，相对湿度为80%的条件下，吸附水蒸气的最大容量可超过百分之百。对水蒸气和其他可凝结的蒸汽都具有较高的吸附能力。
除了以上的特点外 ，本产品性能稳定，其中还加入了抗菌因子，不但霉菌不能在其上滋生，而且也能抑制周围环境中霉菌的生长。将防潮、防霉、抗菌有效的结合。
T-1000集装箱干燥棒以植物纤维为吸附载体，可自然降解。重金属含量低于欧盟及美国法规限值，本身不显酸性，用后丢掉不会对泥土、水和空气等造成污染，属于环保型货柜干燥剂。
Product introduction
T-1000 this product not only has the water speed , and water-holding capacity and water absorption capacity is particularly strong . After absorption of the product swollen gel state, the absorbed water encapsulated in a polymer network, even though it is much lower than the humidity of the surrounding environment humidity is not itself a ” jetting water ” phenomenon .Even in the case of pressure loss is not easily absorbed by water . This product can absorb several times its own weight or even hundreds of times.
At 25℃ , a relative humidity of only 80% conditions, the maximum water vapor adsorption capacity than 100%. Condensing the water vapor and other vapor have a high adsorption capacity.
In addition to the above features, the product is stable, which also added a unique antibacterial factor , not only bacteria can not breed on it , but also inhibits the growth of bacteria in the surrounding environment . The moisture, mildew , antibacterial effective combination is unique in the field .
This product is a natural plant fiber as adsorptive carriers can be one hundred percent natural degradation . Heavy metals Lower than the EU and U.S. regulations limit itself is not acidic , do not throw away after use on soil, water and air. Such as pollution, are environmentally friendly desiccant.
产品特性 Product features
产品参数 Technical parameters
| Physical Analysise Bio Dry Desiccant | T-1000 Desiccant Clay Capacity | 相对湿度 Relative Humidity（%） | Clay Capacity |
| 140 加热后损失量 140 loss after heating | 2.0MAX | 10 | 17-25 |
| pH | 6.9 | 20 | 24-39 |
| 电阻率 Resistivity | 8.0 | 30 | 40-51 |
| 表面密度 Surface density | 0.78 | 40 | 53-62 |
| 表面积 Surface area | 750 | 50 | 60-70 |
| 毛孔容量 Pore volume | 0.72 | 60 | 73-98 |
| 平均空隙之间 Between the average pore | 18 | 70 | 95-104 |
| 比热 Specific heat | 0.13 | 80 | 110-133 |
| 热传导性能 Thermal conductivity | 0.08 | 90 | 110-140 |
| 100 | 150-170 |
适用范围
Scope of application

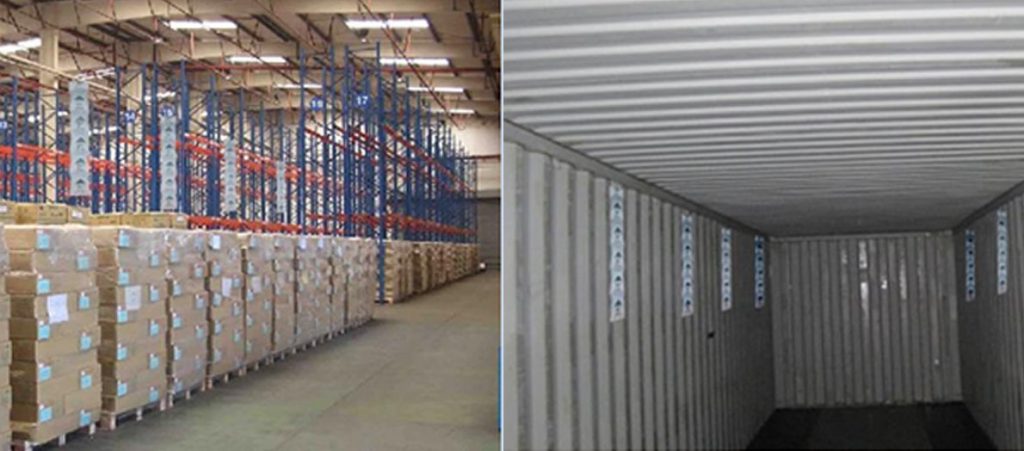

T-1000集装箱干燥棒不含添加剂、腐蚀性物质和氯化物，矿物加工而成。其pH值显中性,对任何金属腐蚀性。能广泛用于纺织品、鞋子、服装、电子产品、电器产品、机械、药品、食品等产品在集装箱内的防潮，也可以用于办公室、仓库控湿。
This product does not contain any additives, corrosive substances and chloride, pure natural mineral processing. Its PH value is neutral, no corrosion of any metal. Can be widely used in textile, shoes, electronics, electrical appliances, machinery, pharmaceuticals, food
products, high-low-level moisture.
T-1000集装箱干燥棒用量
在标准大气压，一定温度条件下，空气中水蒸汽达到饱和/即湿度100%，则单位体积空气中所含的水汽量是恒定的。相对湿度则是指空气中所含水汽量与饱和状态(100%)所含的水汽量的比值。
| 相对湿度 Temperature Relative humidity | 20 | 25 | 30 | 35 | 40 |
| 100% | 17.3 | 23.07 | 30.60 | 39.63 | 51.20 |
| 90% | 15.57 | 20.76 | 27.54 | 35.67 | 46.08 |
| 80% | 13.84 | 18.46 | 24.48 | 31.70 | 40.69 |
| 70% | 12.11 | 16.15 | 21.42 | 27.74 | 35.84 |
| 60% | 10.38 | 13.84 | 18.36 | 23.78 | 30.72 |
集装箱是一个相对封闭的环境，通过缝隙或者通气孔与外界的气体交换在短时间内是有限的。白天在太阳照射下，箱内温度很高(38C),湿度处于比较低的水平(65%)；夜晚来临，温度有比较大的下降(30C)，但是整个空气中的含水量并没有大的变化(还是27g/m3)，则相对湿度急剧上升(从左表中可以查出，可达90%以上)，如果温度进一步下降到25C,则相对湿度会达到100%，多余的水蒸汽将凝结成小水珠，形成“集装箱雾雨”。“集装箱雾雨”会使货物受潮、长霉或生锈。
Container is a relatively closed environment, and the gas exchange with the outside world through gaps or vents is limited in a short time. In the daytime, the temperature in the box is very high (38C) and the humidity is at a relatively low level (65%) under the sun. When night comes, the temperature drops greatly (30C), but the water content in the whole air does not change greatly (still 27g / m3) and the relative humidity rises sharply (it can achieve more than 90% , which can be found from the left table). If the temperature drops further to 25C, the relative humidity will reach 100% and the excess steam will condense into small droplets to form “container fog rain” . It will make the goods damp, moldy or rust.

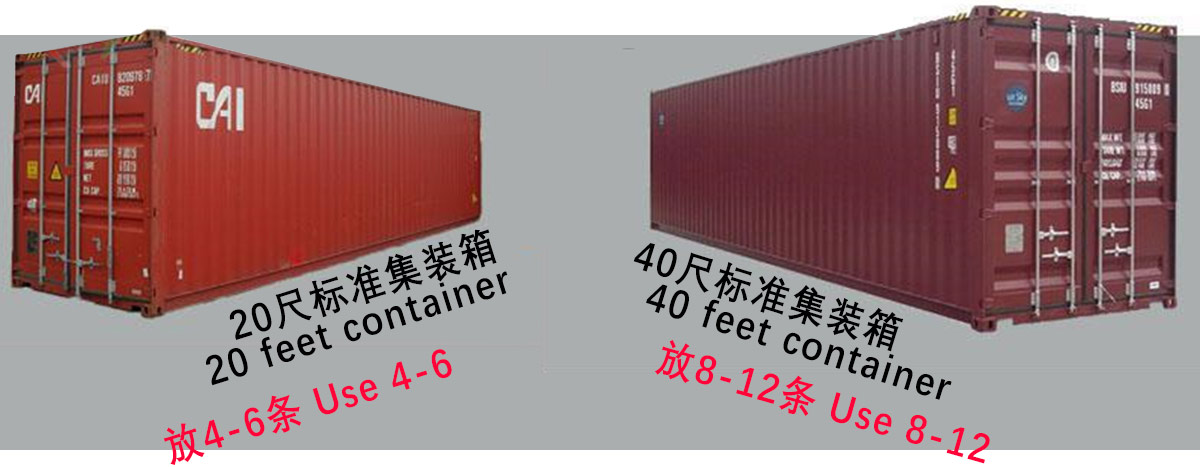

为确保使用足够的干燥剂充分吸收水蒸汽，使箱内的相对湿度始终保持在100%以下，避免集装箱雾雨的产生，保证了货物的运输安全。我们建议集装箱干燥棒用量：
In order to ensure that sufficient desiccant is used to fully absorb water vapor, keep the relative humidity in the box below 100%, avoid container fog and rain and ensure the transportation safety of goods, we recommend that the amount of container drying rod is:
集装箱海运过程中，影响箱内湿度变化的因素非常多，始发地的温湿度、运输经过海域的温湿度、目的地的温湿度都会影响到集装箱中需要去除的水汽量。上面提到的用量只是我们的建议用量，一般来讲：运输周期越长，整个运输过程中的湿度和温度变化越大，就需要使用更多的集装箱干燥剂。另外，集装箱在运输船上的堆放位置，集装箱在码头被堆放的时间，这些往往都不是用户所能指控的，但也必须在决定用量的时候充分予以考虑。
There are many factors can affect the humidity change in the container in the container shipping process. The temperature and humidity at the origin place, the temperature and humidity in the sea area after transportation and the temperature and humidity at the destination will all affect the amount of water vapor that need to be removed from the container. The dosage mentioned above is only our recommended dosage. Generally speaking, the longer the transportation cycle, the greater the change of humidity and temperature in the whole transportation process, more container desiccants need to be used. In addition, the stacking position of containers on the transport ship and the stacking time of containers on the wharf are often beyond the user’s control, but they must also be fully considered when determining the dosage.
包装说明 Packaging instructions

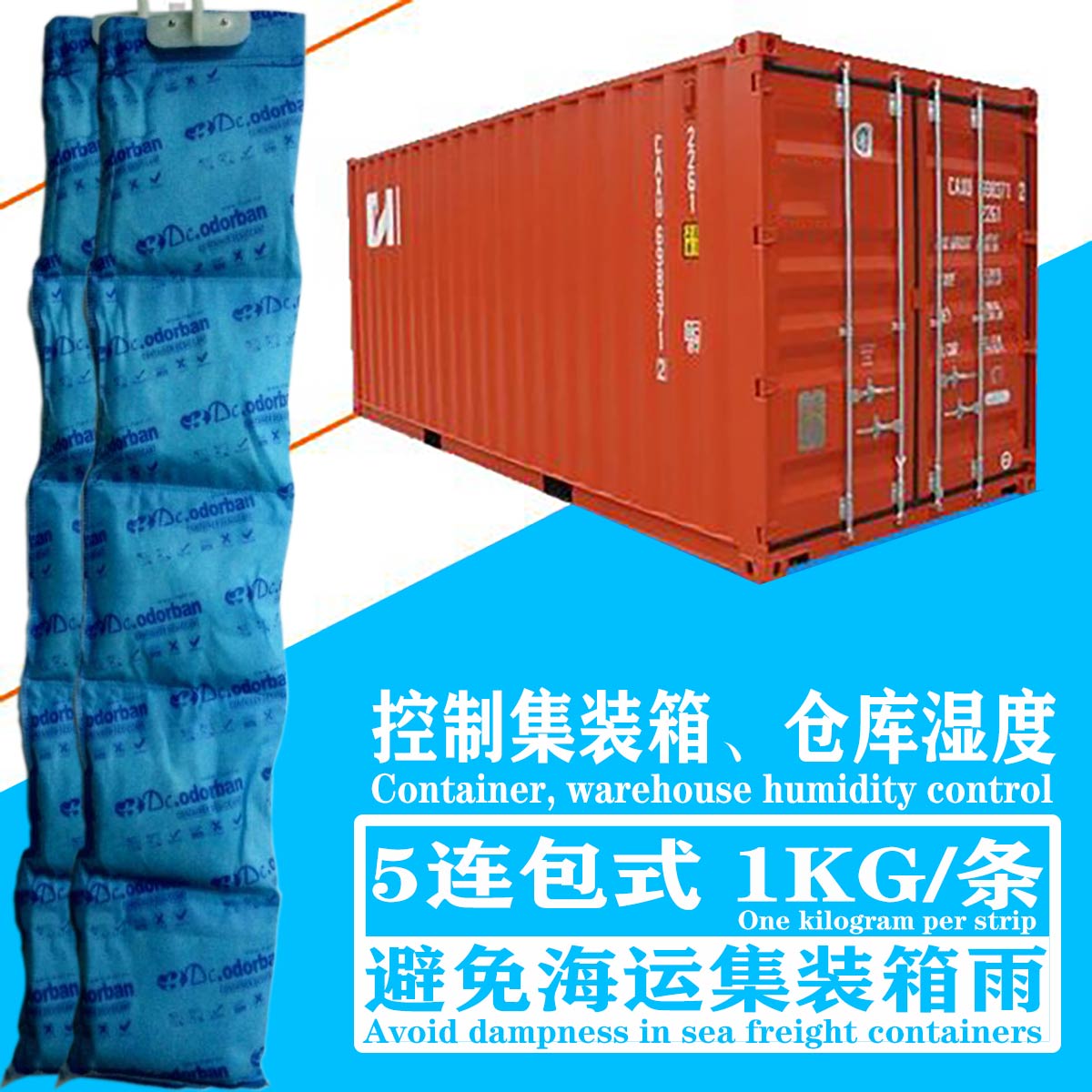

1条重量为1Kg，每一条使用塑料膜密封包装，20条/箱
Article 1 for 1 kg weight, the plastic bag packages, 20 / box
贮存说明 Storage instructions
1、运输过程中注意小心轻放，避免内外包装的机械擦伤。
1、Handle with care attention during transport, to avoid internal and external packaging of the mechanical abrasions.
2、运输和仓储的环境保持阴凉干燥。
2、Transportation and warehousing environments remain cool and dry.
3、内包装拆包使用后，剩余部分产品必须放置于密闭容器中保存。
3、Inner packing unpacking after use, the remaining part of the product must be placed in a sealed container.
